Expandable IO modules for the UniStream Modular, Built-In & Virtual HMI PLCs
Unitronics’ UniStream PLCs can be expanded whether they have IO built in or not. The wide range of robust IO on this page can be configured on any UniStream PLC to suit your requirements with up to 16 IO modules using the powered expansion cable. The Modular and Virtual HMI PLCs can be expanded by attaching IO directly to the PLC/CPU or Din-rail mounted away from the PLC using the UAG expansion cables. The built-in IO PLCs can be expanded further with the use of UAG-CX expansion cables.
Part Numbers-
UIS-WCB1,UIS-WCB2,UID-0808R,UID-0808T,UID-W1616R, UID-W1616T, UID-0016R, UID-0016T, UID-1600, UID-0808THS, UIA-0402N, UIA-0800N, UIA-0800NH, UIS-04PTN, UIS-04PTKN,UIS-08TC, UIA-0006, UAG-XK125, UAG-XK300, UAG-XKP125, UAG-XKP300, UAG-XKPL600, UAG-XKPL1200, UAG-XKPL1500, UAG-XKPL2000, UAG-XKPL3000,
Tags
AI, AO, DI, Digital, DO, EX-RC1, EXP, Expansion, HSC, IO, Loadcell, Remote, TCP, Temperature, UAC, UAG, UIA, UID, UIS, UniStream, Unitronics, Weight, XK, XKP, Digital, Output, Input, Analogue, expansion, IO, I/O, PT100, Thermocouple
Price range: £58.15 through £299.64 Ex VAT
A wide range of IO can be connected directly to the back of the PLC/HMI or Din-rail mounted using the appropriate expansion cable.
If you would like to connect remote IO over CANbus then the following Expansion adaptor is required.
Unitronics standard policy of customer care—no hidden costs or tiers. All software, utilities, and support—including membership in Unitronics’ Community Forum—are provided at no additional charge
| Part Numbers | UIS-WCB1, UIS-WCB2, UID-0808R, UID-0808T, UID-W1616R, UID-W1616T, UID-0016R, UID-0016T, UID-1600, UID-0808THS, UIA-0402N, UIA-0800N, UIA-0800NH, UIS-04PTN, UIS-04PTKN, UIS-08TC, UIA-0006, UAG-XK125, UAG-XK300, UAG-XKP125, UAG-XKP300, UAG-XKPL600, UAG-XKPL1200, UAG-XKPL1500, UAG-XKPL2000, UAG-XKPL3000 |
|---|
| The screens can be expanded via DIN rail mounted IO using the interfaces below together with the on board IO and ethernet IO expansion options. | |||||||||||
| Digital Inputs and Outputs (12V DC available on request) | |||||||||||
| Inputs | Outputs | ||||||||||
| Part No. | Digital (Isolated) | HSC/ Shaft Encoder | Analogue | Temp Measurement |
Weight Measurement | Transistor (Isolated) | PWM/HSO | Relay | Analogue | Install Manual | Tech Manual |
| UID-1600 | 16 Sink/Source | None | None | None | None | None | None | None | None |  |
|
| UID-0808T | 8 Sink/Source | None | None | None | None | 8 Source (pnp) | None | None | None | |
|
| UID-W1616TÂ | 16 Sink/Source | None | None | None | None | 16 Source (pnp) | None | None | None | |
|
| UID-0808THS | 8 Sink/Source | 2 250kHz 32-bit |
None | None | None | 8 Source/Sink | 2 @ 250kHz 2 @ 3kHz |
None | None | |
|
| UID-0016TÂ | None | None | None | None | None | 16 Source (pnp) | None | None | None | |
|
| UID-0808R | 8 Sink/Source | None | None | None | None | None | None | 8 | None | |
|
| UID-W1616R | 16 Sink/Source | None | None | None | None | None | None | 16 | None | |
|
| UID-0016R | None | None | None | None | None | None | None | 16 | None | |
|
| UIS-WCB1 | 10 Sink/Source | 2 10kHz 32 bit | 2 (Isolated)
0-10V, 0-20mA, 4-20mA 14-bit |
2 (Isolated)
Thermocouple PT100/NI100/NI120 |
None | 2 (Not Isolated) Sink (npn) | 2
250kHz |
8 | 2 0-10V 14-bit±10V 13-bit + sign 0-20mA, 4-20mA 13-bit |
|
|
| UIS-WCB2Â | 10 Sink/Source | 2 10kHz 32 bit | 2 (Isolated)
0-10V, 0-20mA, 4-20mA 14-bit |
2 (Isolated)
Thermocouple PT100/NI100/NI120 |
None | 8 Source (pnp) 2 Sink (npn) |
2 250kHz (Sink Outputs Only) |
None | 2 0-10V 14-bit±10V 13-bit + sign 0-20mA, 4-20mA 13-bit |
|
|
| EXF-RC1 | Remote I/O adaptor module via CANbus, multiple EX-RC1 adaptors may be connected to each PLC with up to 8 I/O expansion modules per adaptor. See Below for more details |
|
|||||||||
| If you would like to connect remote IO over CANbus then the following Expansion adaptor is required.
The EX-RC1 Expansion module can be connected to a UniStream PLC to allow the use of DIN-rail mounted IO modules over CANbus. |
|||||||||||
| If you need help configuring your Inputs and Outputs please feel free to contact us. We also offer software support. | |||||||||||
| IO = Inputs and Outputs | |||||||||||
| The screens can be expanded via DIN rail mounted IO using the interfaces below together with the on board IO and ethernet IO expansion options. | |||||||||||
| Analogue, Thermocouple, PT100, PT1000 and Load cell units | |||||||||||
| Inputs | Outputs | ||||||||||
| Part No. | Digital (Isolated) | HSC/ Shaft Encoder | Analogue | Temp Measurement |
Weight Measurement | Transistor (Isolated) | PWM/HSO | Relay | Analogue | Install Manual | Tech Manual |
| UIA-0006 | None | None | None | None | None | None | None | None | 6 0-10V 14-bit±10V 13-bit + sign 0-20mA, 4-20mA 13-bit |
|
|
| UIA-0402NÂ | None | None | 4 0-10V, 0-20mA, 4-20mA 13-bit |
None | None | None | None | None | 2 0-10V 14-bit±10V 13-bit + sign 0-20mA, 4-20mA 13-bit |
|
|
| UIA-0800N | None | None | 8 0-10V, 0-20mA, 4-20mA 13-bit |
None | None | None | None | None | None | |
|
| UIA-0800NH | None | None | 8 0-10V, 0-20mA, 4-20mA With HART Communication |
None | None | None | None | None | None | |
|
| UIS-04PTN | None | None | None | 4 PT100/ NI100/ NI120 | None | None | None | None | None | |
|
| UIS-04PTKN | None | None | None | 4 PT1000/ NI1000/ NI1200 | None | None | None | None | None | |
|
| UIS-08TC | None | None | None | 8 Thermocouple | None | None | None | None | None | |
|
| UIS-WCB1 | 10 Sink/Source | 2 10kHz 32 bit | 2 (Isolated)
0-10V, 0-20mA, 4-20mA 14-bit |
2 (Isolated)
Thermocouple PT100/NI100/NI120 |
None | 2 (Not Isolated) Sink (npn) | 2
250kHz |
8 | 2 0-10V 14-bit±10V 13-bit + sign 0-20mA, 4-20mA 13-bit |
|
|
| UIS-WCB2Â | 10 Sink/Source | 2 10kHz 32 bit | 2 (Isolated)
0-10V, 0-20mA, 4-20mA 14-bit |
2 (Isolated)
Thermocouple PT100/NI100/NI120 |
None | 8 Source (pnp) 2 Sink (npn) |
2 250kHz (Sink Outputs Only) |
None | 2 0-10V 14-bit±10V 13-bit + sign 0-20mA, 4-20mA 13-bit |
|
|
| If you need help configuring your Inputs and Outputs please feel free to contact us. We also offer software support. | |||||||||||
| IO = Inputs and Outputs | |||||||||||
If you need help configuring your Inputs and Outputs please feel free to contact us.
| UniStream PLCs allow IO to be attached to the back of the PLC, directly connected to the CPU unit. | |||

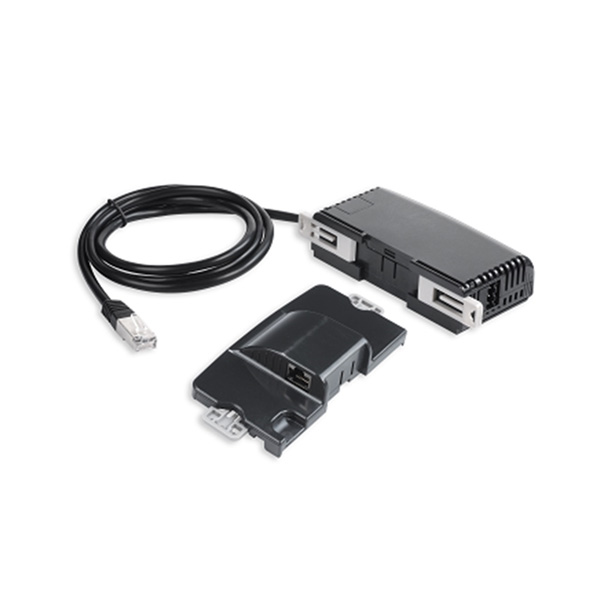

| If you would like IO to be placed away from the PLC and DIN-rail mounted, then an Expansion cable (XK/ XKP Kit) is required. The Expansion cables (XK/XKP) kits below range from 1.25M to 30M & are either powered (XKP) or non-powered (XK) depending on the IO you wish to attach and will enable the use of any UniStream IO to be mounted away from the PLC. Only 5 UAG-XK Modules allowed Per system (Check manual for configuration restrictions) |
|||
| Part No. | Description | Install Manual | Technical Manual |
|---|---|---|---|
| UAG-XK125 | 1.25m Short range XK expansion kit | |
|
| UAG-XK300 | 3m Short range XK expansion kit | |
|
| UAG-XKP125 | 1.25m Powered Short range XKP expansion kit | |
|
| UAG-XKP300 | 3m Powered Short range XKP expansion kit | |
|
| UAG-XKPL600 | 6m Powered Long range XKPL expansion kit | |
|
| UAG-XKPL1200 | 12m Powered Long range XKPL expansion kit | |
|
| UAG-XKPL1500 | 15m Powered Long range XKPL expansion kit | |
|
| UAG-XKPL2000 | 20m Powered Long range XKPL expansion kit | |
|
| UAG-XKPL3000 | 30m Powered Long range XKPL expansion kit | |
|
| We also offer software support. | |||
| IO = Inputs and Outputs | |||
If you need help configuring your Inputs and Outputs please feel free to contact us.
| UniStream built in PLCs have IO built in to the back of the PLC/HMI. | |||
| If you would like IO to be placed away from the PLC and DIN-rail mounted, then an Expansion cable (XK/XKP Kit) is required. The powered Expansion cables/ XKP-CX kits below range from 1.25M to 30M & will enable the use of any UniStream IO to be mounted away from the PLC. Only 5 UAG-XK Modules allowed Per system (Check manual for configuration restrictions) |
|||
| Part No. | Description | Install Manual | Technical Manual |
|---|---|---|---|
| UAG-CX-XKP125 | 1.25m Short range XKP expansion kit | |
|
| UAG-CX-XKP300 | 3m Short range XKP expansion kit | |
|
| UAG-CX-XKPL600 | 6m Powered Long range XKPL expansion kit | |
|
| UAG-CX-XKPL1200 | 12m Powered Long range XKPL expansion kit | |
|
| UAG-CX-XKPL1500 | 15m Powered Long range XKPL expansion kit | |
|
| UAG-CX-XKPL2000 | 20m Powered Long range XKPL expansion kit | |
|
| UAG-CX-XKPL3000 | 30m Powered Long range XKPL expansion kit | |
|
| We also offer software support. | |||
| IO = Inputs and Outputs | |||
UniLogic is the newest modern programming software from Unitronics that is included with this product.
This programming software lets you develop your program in a smarter way saving you money on your programming costs. With the look and feel of a modern day development suite UniLogic makes the programmer feel at home with a familiar style to the menu structure adopted by most of the Windows™ software providers.
You can use UniLogic to program, control, access and download data to and from the PLC remotely and directly.
Get more information about the UniLogic programming software HERE
