Unitronics Jazz® Micro OPLC™ Series 1

PLC with built-in text display, keypad, and onboard I/O

Functions:

  • 60 screens – 15 languages
  • High speed – PT100 – TC inputs
  • PWM – PID – Time based control

Interested in a powerful colour touch screen PLC? Check Out the Samba

Description

Communication:

  • SMS messaging
  • Remote access
  • MODBUS/OPC Server
  • MODBUS networking
  • RS232/RS485

Replace that “smart relay” with a real PLC – for the same low price. Jazz™ is a full-function programmable logic controller with onboard I/O and a built-in operator panel. Jazz™ is specifically designed to control small machines, and to perform simple-to-medium automation tasks. Compact and economical, Jazz™ enables you to use a low-budget unit without compromising on features and technology.

Jazz™ offers the flexibility of ladder programming (24K Ladder code, virtual), on-board I/O configurations (some models with direct temperature inputs), communication options such as GSM/SMS, remote access, and MODBUS networking.

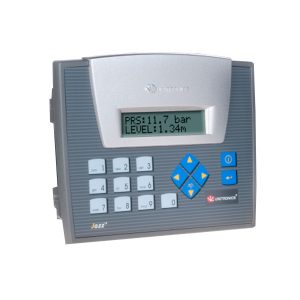

Jazz Micro OPLC image
The Jazz™ HMI application enables you to design up to 60 text screens, using up to 64 HMI variables for the display of time, date, and real-time system data. Jazz™ programming is as easy as it gets – build ladder logic control applications using click-and-drop elements and create your HMI application in the same simple environment.

Now certain models have a wipe clean flat front , ideal for food and pharmaceutical applications, the Jazz™ has the same high functionality and same low price whichever style is used, and both versions meet IP66 ingress protection.

U90 Ladder

i4 Automation U90 Software for Unitronics

U90 Ladder is the first programming software for early Unitronics’ PLCs. This basic programming software can be used to program the M90/91 & Jazz series of PLC.
See a full overview in the video below.

The new Jazz™ offers the flexibility of ladder programming (48K Ladder code, virtual), on-board I/O configurations (some models with direct temperature inputs), communication options, such as GSM/SMS, remote access, and MODBUS (Master or Slave) networking. The latest Series 2 Jazz now includes USB programming options.

The Jazz™ HMI application enables you to design up to 60 text screens, using up to 64 HMI variables for the display of time, date, and real-time system data.  Jazz™ programming is as easy as it gets – build ladder logic control applications using click-and-drop elements and create your HMI application in the same simple environment.

You can use U90 Ladder and the associated software utilities to program, control, access and download data to and from the PLC remotely and directly.

Get more information about the U90 programming software HERE

Manuals

JZ10 Manuals Description Install Manual Technical Manual
JZ10-11-PT15

JZ10-J-PT15

24VDC, 3 Digital Inputs, 3 Digital/Analogue Inputs, 3 PT1000/NI1000 Input, 5 Relay Outputs, 1 Transistor Outputs PDF Link PDF Link
JZ10-J-T40

JZ10-T40

24VDC, 22 Digital Inputs, 2 Digital/Analogue Inputs, 2 Analogue Inputs, 16 Transistor Outputs PDF Link PDF Link
JZ10-J-UA24

JZ10-UA24

24VDC, 9 Digital Inputs, 2 Digital/Analogue Inputs, 2 Analogue, 2 PT100/TC Input, 5 Relay Outputs, 2 Transistor Outputs PDF Link PDF Link
JZ10-11-UN20

JZ10-J-UN20

16 Digital, 2 D/A , 2 Analog Inputs1  11 Relay Outputs PDF Link PDF Link

Inputs/Outputs

Inputs Outputs
Part No. Summary Digital (Isolated) HSC/ Shaft Encoder Analogue Temp (MEAS) Transistor (Isolated) PWM/HSO Relay Analogue Operating Voltage
JZ10-11-PT15

JZ10-J-PT15

24VDC, 3 Digital Inputs, 3 Digital/Analogue Inputs, 3 PT1000/NI1000 Input, 5 Relay Outputs, 1 Transistor Outputs 8 2  0-10V 10-bit None 8 pnp 2 32kHz None None 24VDC
JZ10-J-T40

JZ10-T40

16 Digital, 2 D/A, 2 Analog Inputs1 20 Transistor Outputs 18 None None 20 pnp None None None 24VDC
JZ10-J-UA24

JZ10-UA24

9 Digital Inputs, 1 HSC, 2 A/D, 2 AI, 2 TC/PT100,  5 Relay Outputs, 2 Transistor Outputs, 2 AO 11 2 0-20mA 4-20mA  2 0-10 VDC 2 Thermocouple, PT100 2 pnp 2 5 2 10V 4-20mA 12-bit 24VDC
JZ10-11-UN20

JZ10-J-UN20

9 Digital, 2 D/A1, Analog  1 TC/PT100 Inputs1 5 Relay 2 Transistor Outputs 11 1  5kHz, 16-bit 2  0-10V 10-bit 1  0-20mA, 4-20mA 10-bit 1  Thermocouple, PT100 2 pnp 2 5 None 24VDC

Accessories

Part No. Description Install Manual Technical Manual

JZ-PRG

RS232 programming kit consists of MJ10-22-CS10, MJ20-CB200 6 wire programming cable and an MJ20-PRG PDF Link PDF Link

JZ-RS4

RS232/RS485 programming kit consists of MJ10-22-CS25, 4 wire programming cable and an MJ20-RS PDF Link PDF Link

MJ20-PRG

RS232 programming port module PDF Link PDF Link

MJ20-RS

RS232/RS485 programming port module PDF Link PDF Link

MJ20-MEM1

Program cloning module PDF Link

MJ20-JZ-SL1

Keypad slide set PDF Link

Discontinued

These models have been discontinued and superseded by the Jazz 2

JZ10 Manuals Description Install Manual Technical Manual

JZ10-11-R10

24VDC, 6 Digital Inputs, 4 Relay Outputs (Alternative) PDF Link PDF Link

JZ10-11-T10

24VDC, 6 Digital Inputs, 4 Transistor Outputs (Alternative) PDF Link PDF Link

JZ10-11-R16

24VDC, 6 Digital Inputs, 2 Digital/Analogue Inputs, 2 Analogue Inputs, 6 Relay Outputs (Alternative) PDF Link PDF Link

JZ10-11-T17

24VDC, 6 Digital Inputs, 2 Digital/Analogue Inputs, 2 Analogue Inputs, 7 Transistor Outputs (Alternative) PDF Link PDF Link

JZ10-11-R31

24VDC, 16 Digital Inputs, 2 Analogue/Digital Inputs, 2 Analogue Inputs, 11 Relay Outputs (Alternative) PDF Link PDF Link

24V DC Power Supplies

Part Number PU Data Sheet
722752 Regulated, 18 W Power Supply PDF Link
722753 Regulated, 30 W Power Supply PDF Link
722754 Regulated, 60 W Power Supply PDF Link
722758 Regulated, 120 W Power Supply PDF Link
722759 Regulated, 240 W Power Supply PDF Link
722800 Regulated, 480 W, 3-Phase Power Supply PDF Link
